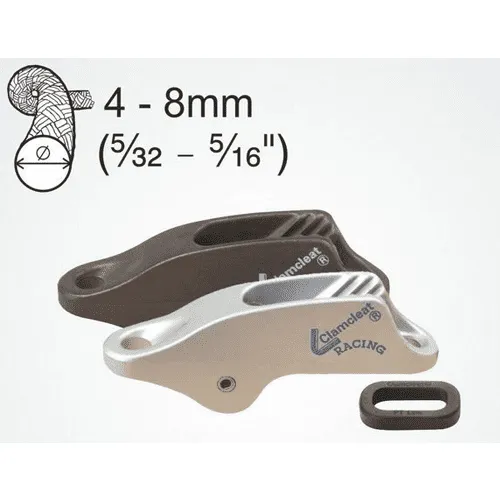

Clamcleat CL253 Trapeze & Vang Cleat Alloy.

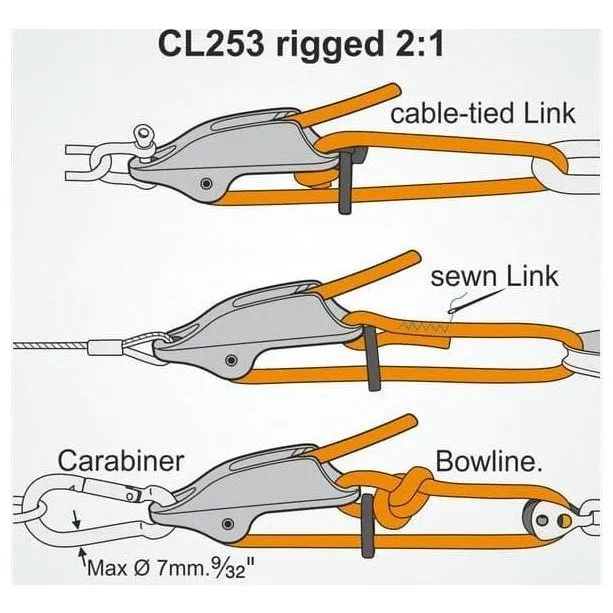

The Sailor's preferred choice for adjusting dinghy trapeze lines. Also used for vangs & kicking straps; outhauls and small dinghy forestays. The Clamcleat CL253 offers a light weight and compact solution for rope adjustment where a quick, positive lock, that is easy to release, is required.

The cleat has an in-built pulley. Manufactured from aluminium for light weight and durable performance,
CL253AN has a hard anodised finish to give a hard wearing surface.

Technical Details           Metric                  Imperial
Rope Diameter                4 - 8mm               3/16 - 5/16"
Material               Aluminium        Aluminium
Hole Centres                 72mm                2 13/16"
Length                         90mm                 3 9/16"
Width                         18mm                  11/16"
Height                         35mm                  1 3/8"
Weight                         46gms                1.6oz

The purchaser is responsible for choosing the correct product for its particular application.
